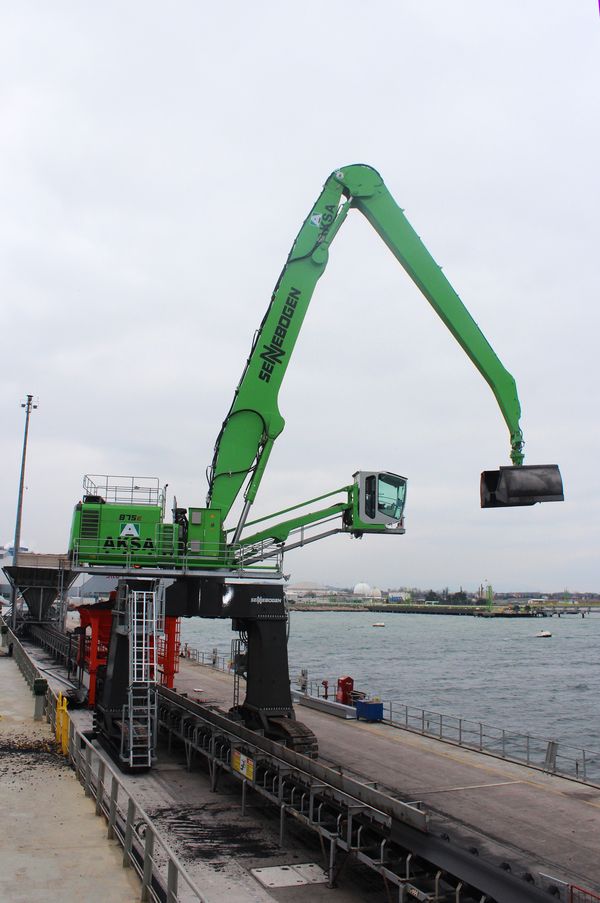

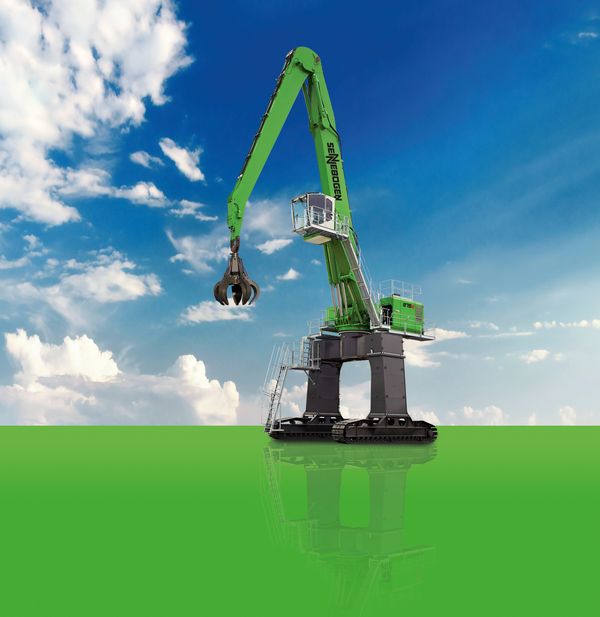

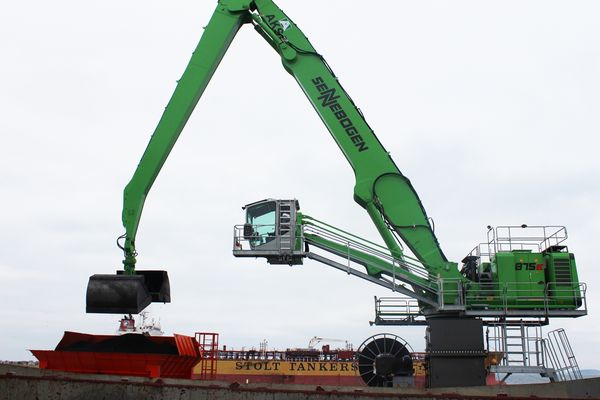

SENNEBOGEN 875 E-Series - the optimal machine for port handling

The SENNEBOGEN 875 E-Series completely satisfies demanding port handling requirements with ranges of up to 27 m and a maximum load capacity of 7.5 t, Whether handling piece goods or bulk goods, the new SENNEBOGEN 875 is impressive with its high materials handling capacity, with proven low energy costs and operating costs that have even been further reduced, thanks to a new energy recovery system named SENNEBOGEN Green Hybrid. Customer-specific gantry or pylon solutions and variable cabin elevation offer an ideal overview and maximum operating comfort.

With the 875 E-series, SENNEBOGEN offers a material handling machine with an operating weight of up to 150 t that is ideally suited for port handling and industrial applications. A newly developed energy recovery system, the SENNEBOGEN Green Hybrid System is being implemented for the first time. When lowering and braking the boom, the energy is buffered in innovative system and is then available again for the next work stroke. Energy savings of up to 30 % are made possible by that innovation.

With equipment lengths up to 27 m and a maximum load capacity of 7.5 t, the 875 extends the previous product line of the SENNEBOGEN port handling machines. Equipped with a modern Cummins 391 kW diesel engine, the machine fully satisfies the Tier 4i requirements. Alternatively a 430 kW energy-saving electric motor is available.

Maximum comfort and ideal overview for port handling applications

The elevating horizontally-adjustable maXcab Industry is standard equipment for the SENNEBOGEN 875. The maXcab Industry offers the operator a pleasant workplace with automatic air conditioning and high-precision joystick control. Optionally the machine can also be equipped with the new Mastercab in combination with the variable Skylift 900 cabin elevation unit. With the Skylift 900 the operator cab can be variably adjusted over a height of 9.5 m. The proven SENNEBOGEN modular concept offers extensive superstructure variants to meet customer requirements. From mobile undercarriage to crawler and rail undercarriage, extending to sophisticated gantry and pylon solutions for special application areas, all can be can be individually implemented. For port handling, particularly with gantry and pylon superstructures, the SENNEBOGEN 875 reaches an outstanding viewing height and offers ideal prerequisites for fast work cycles - this is a valuable contribution in the areas of shorter berthing times and greater occupational health and safety, especially when unloading ships.

In daily operation the SENNEBOGEN 875 is characterized by its high level of serviceability and ease of maintenance. The walk-on uppercarriage with continuous gallery ensures uncomplicated access to maintenance and service points. Typical for SENNEBOGEN in this regard is also the clear arrangement of all components, and the proven longitudinal installation of the engine offers service advantages. Moreover, the all-round railing, an additional access ladder to the cab, as well as powerful LED headlights and peripheral cameras that support the operator in his work, ensure safety.
